High Frequency Vertical Electrodynamics Vibration Shaker Table Test Machine
This high-performance vibration test machine features a double-magnetic circuit structure with self-generated skeleton action circles, airborne support, roller bearings, and linear guidance. It incorporates advanced trunnion isolation technology to perform X, Y, Z three-axis sinusoidal vibration tests, broadband random vibration tests, classical pulse tests (half-sine, trapezoidal, sawtooth wave), and shock response spectrum tests.
Key Specifications
- Frequency range: 5 Hz to 3000 Hz
- Test modes: Fixed frequency, sweep back and forth, sine, random, shock
- CE Certified for industrial applications
Applications
Widely used in automotive electronics, motor meter assemblies, storage batteries, electric equipment, motors, safety valves, air conditioning compressors, and across defense, aerospace, communications, and electronics industries.
Technical Specifications
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil |
| ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | Φ150 |
| ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | Φ230 |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 51 | 450 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | Φ450 |
Key Features
- Carefully designed moving coil skeleton with higher first-order axial resonant frequency
- Light armature with high stiffness for 3500 Hz frequency operation
- Computer-controlled operation with immediate data storage capability
- Real-time control chart display
- Low resistance, high-performance design for efficiency and cost-effectiveness
- High reliability with minimal operational faults
Vertical Expander Option
VT vertical extended-bench with specified clamps features precision-calculated design for optimal performance. Constructed with high-quality materials and workmanship for perfect structure and durability.
Horizontal Expander Option
Designed for small loading benches to achieve higher acceleration and working frequency, improving overall machine performance. Features static pressure V-shaped track with slope-resistant and bias-loading resistant capacity. Includes built-in oil pump for easy operation.

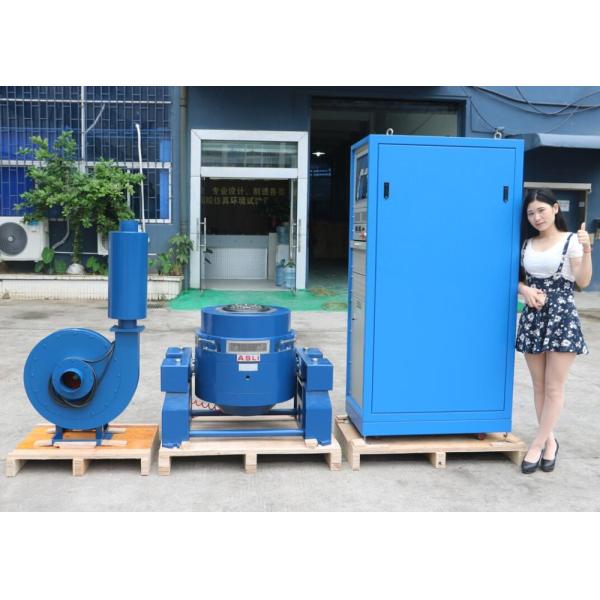

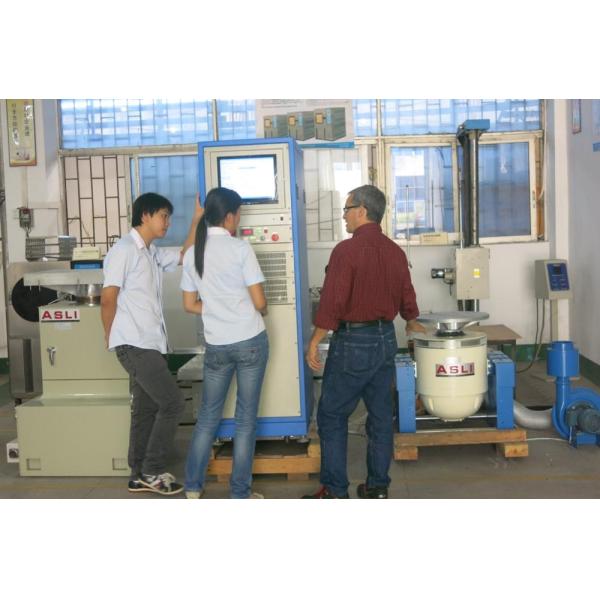

Product Images
Our Service
- High quality guarantee with 12-month warranty
- Professional documentation with shipment
- Custom packing available with pre-shipment photos
- Prompt response within 48 hours
- Technical solutions provided within 3 working days
- Professional after-sales service from our engineers
For more information about our High Frequency Vertical Electrodynamics Vibration Shaker Table Test Machine, please contact our technical team.
